Title

Unboxing

What's inside your boxes.

The Sunshade comes with all the necessary parts you need to install included within the box that you receive. Use this parts list to verify all components before begining assembly. If you find you have any broken or missing parts, you can request replacements by contacting our support team.
Title

Installation

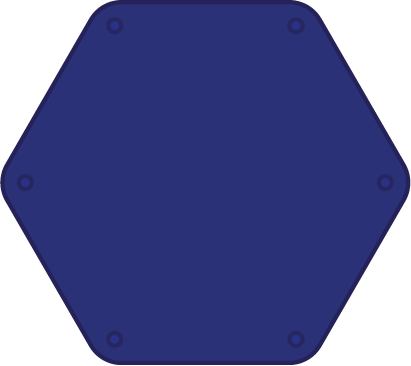

Panel Identification.

Each sunshade panel is labelled to match a specific dome panel and is designed to be installed on the inside of the dome. To ensure correct placement:

Match numbers: Find the panel with the same number as the dome panel you wish to cover.

Correct orientation: The number should be readable from outside the dome.

Top-facing: The number should be at the top of the panel, facing upward toward the top of the dome.

Installation Steps

1. Attach the Fasteners: Locate the screws at the corners of each panel. Either remove the nut and replace with a Sunshade Fastener, or if there is enough thread, you can screw the Fastener directly on top.

2. Fit the Sunshade Panel: Align the holes on the sunshade panel with the fasteners. Gently pull the panel over each Fastener until it clears the flange — this holds it securely in place.

3. Position as Desired: Attach or remove individual panels as needed. Cover up to 80% of the dome for custom shade, privacy, or insulation wherever you want it.

Special Note: If placing a sunshade panel that overlaps the sliding door runner at the back of the dome position the panel behind the door runner, so it sits between the dome shell and the runner strip. This ensures the sunshade won’t interfere with the door’s opening or closing. To do this, simply unscrew the runner where it overlaps the panel, slide the sunshade into position between the dome and runner, then reattach — securing the panel neatly underneath.
